Network Binding Order Warning

One of the more common errors I see when setting up a Windows cluster (usually in preparation for a SQL Server Failover Cluster Instance or a SQL Server Availability Group) is regarding an incorrect network binding order.  You will see this presented as a warning in the Cluster Validation Report.  There are actually two different errors that I have seen with the first being very common and the second being more rare.

Error 1

Rule “Network binding order” generated a warning.

The domain network is not the first bound network.  This will cause domain operations to run slowly and can cause timeouts that result in failures.  Use the Windows network advanced configuration to change the binding order.

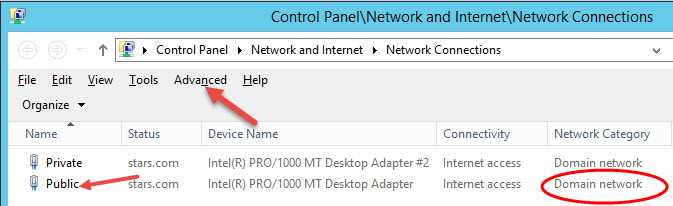

What this error means is that the network card used to connect to your domain network is not at the top of the network binding order.  The fix for this is usually pretty easy because we just need to go into Control Panel…Network and Internet…Network Connections and make the change.  Once we get there we need to identify which NIC card is connected to the domain network and that can be seen in the “Network Category” column shown in the screen shot below.  You’ll notice that I have labeled my connections Public and Private and they both show “Domain Network”.  If you are configuring a multi-subnet cluster you will see the exact same thing, but if your cluster is on a single subnet the Private network connection will show “Public Network”.  So in a single subnet it’s the one labeled “Domain Network” that you are targeting and in a multi-subnet cluster it’s your Public connection you are targeting.

GUI Network Binding Order

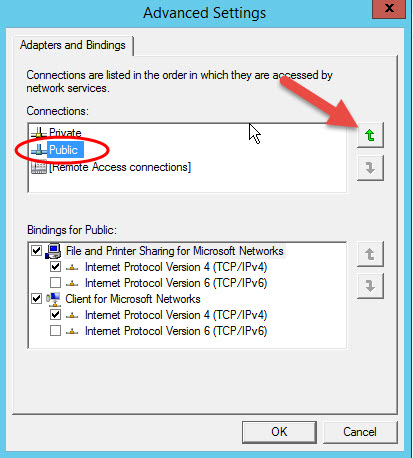

In order to change the network binding order we need to go into the advanced settings.  Starting in Windows 2008 this option is hidden.  If you don’t see it hit ALT on your keyboard and the Advanced option pointed out in the previous screen shot will appear.  We need to select that and then go to Advanced Settings.  You will now be presented with the Advanced Settings box shown below.  In the screen shot you will see that my Public network is the second in the binding order and we need to move it to the top by selecting it and hitting the up arrow.  Click OK and go run Cluster validation again to see if it is resolved.

Network Binding Order

There is a chance that either your domain network was already at the top of the binding order, or you ran Cluster Validation again and it failed with the same error.  If that is the case then you either have a ghost network card (can be caused by NIC changes or driver changes) or the Microsoft Failover Cluster Virtual Adapter is bound before the domain network.  These adapters are not show in the GUI, but can be found in the registry and other places like the ipconfig /all command.

Unfortunately the network binding order in the registry uses GUIDs instead of friendly names, so we’ll have to do some translating to find and move the domain network to the top.  The first thing we will do is go figure out what the GUID of the domain network NIC is by running the following command from a command prompt.


WMIC Nicconfig Get Description, SettingID

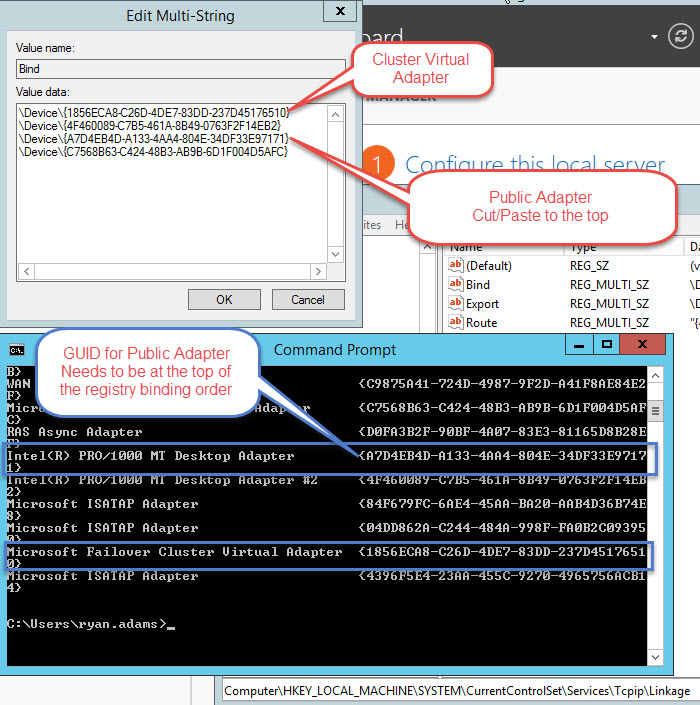

You’ll remember that I renamed my NIC cards to be called Public and Private, but that’s the friendly name and not what will be returned from WMIC.  WMIC returns what is in the “Device Name” column from the very first screen shot above.  In my case it is called “Intel(R) PRO/1000 MT Desktop Adapter”.  You can see this pointed out in the screen shot below where we can see the output of WMIC in the command window.  Note that the GUID starts with A7.

Registry Network Binding Order

Now we just need to open Regedit and head to HKLM\SYSTEM\CurrentControlSet\Services\Tcpip\Linkage\Bind.  That’s right, we’re getting down and dirty now so make sure you know what you are doing and above all else backup your registry before you make any changes.  Mistakes in the registry can be costly and destroy a system so proceed with caution because from here on out the responsibility lies solely with you…not me.  In the screen shot above you can see that my Public Domain Network is next to the last in the list and we need it to be at the top.  As an aside, I have also pointed out where the Microsoft Failover Cluster Virtual Adapter is located since I see this listed above the Public network from time to time.

The fix here is to cut the GUID for the Public Domain Network that starts with A7 and paste it at the top of the list.  Now we can go run Cluster Validation and life should be good unless you get the second error we’ll talk about now.

Error 2

Note that the error message is the same error you got above.  However, it’s a completely different issue.  So let’s say you verified the above and that the domain network is the first in the list, but the error persists.  Go Look in the following file and search for “IsDomainInCorrectBindOrder” to find the warning in the log file.


C:\Program Files\Microsoft SQL Server\110\Setup Bootstrap\Log\"Newest Log File Folder By Date"\Detail.txt

Here is a sample of the section you are looking for.

Init rule target object: Microsoft.SqlServer.Configuration.SetupExtension.NetworkBindingFacet
NetworkBindingFacet: Looking up network binding order.
NetworkBindingFacet: Network: ‘Production Team’ Device: ‘\Device\{0BF4D354-E6E9-480C-91CF-DC598282C4C1}’ Domain: ‘LITWARE.COM’ Adapter Id: ‘{0BF4D354-E6E9-480C-91CF-DC598282C4C1}’
NetworkBindingFacet: Network: ‘Local Area Connection’ Device: ‘\Device\{4DB91193-72F1-4713-A938-EB73F27CFEC8}’ Domain: ” Adapter Id: ‘{4DB91193-72F1-4713-A938-EB73F27CFEC8}’
NetworkBindingFacet: Network: ‘Heart Beat’ Device: ‘\Device\{5AC63784-8088-40F7-93C8-37F9CD03D445}’ Domain: ” Adapter Id: ‘{5AC63784-8088-40F7-93C8-37F9CD03D445}’
NetworkBindingFacet: Network: ‘BackUp Network’ Device: ‘\Device\{52AEDCB0-9E8E-4243-9D5D-ED86E602DF23}’ Domain: ” Adapter Id: ‘{52AEDCB0-9E8E-4243-9D5D-ED86E602DF23}’
IsDomainInCorrectBindOrder: The top network interface ‘Production Team’ is bound to domain ‘LITWARE.COM’ and the current domain is ‘CONTOSO.COM’.
Evaluating rule : IsDomainNetworkTopOfBindings
Rule running on machine: Server1
Rule evaluation done : Warning
Rule evaluation message: The domain network is not the first bound network. This will cause domain operations to run slowly and can cause timeouts that result in failures. Use the Windows network advanced configuration to change the binding order.
Send result to channel: RulesEngineNotificationChannel

The issue here is that the server is joined to the LITWARE.COM domain, but the current domain is that of the currently logged in user which happens to be CONTOSO.COM.  Another way to say this is that the server is joined to the LITWARE.COM domain, but you logged with a user account from the CONTOSO.COM domain to create the cluster.  From a domain perspective these are completely different domains that have been trusted and it’s possible that they are in different forests too, but again they are trusted.  Technically this configuration is correct as the public/domain joined network is indeed at the top of the list.  You have two choices here.  You can safely ignore this warning or you can log out and back in with a user in the LITWARE.COM domain.
